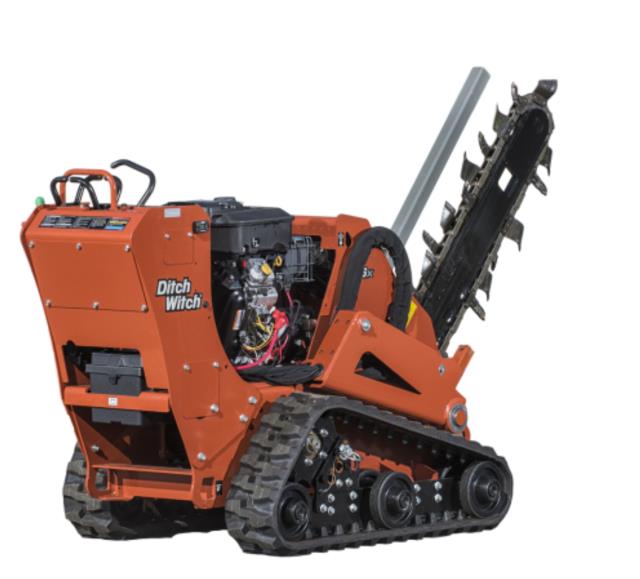

TRENCHER WALKBEHIND

Manufacturer Link: <Click Here>


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: DITCH WITCH

Daily: Request Quote

Weekly: Request Quote

Quantity:

Additional Information

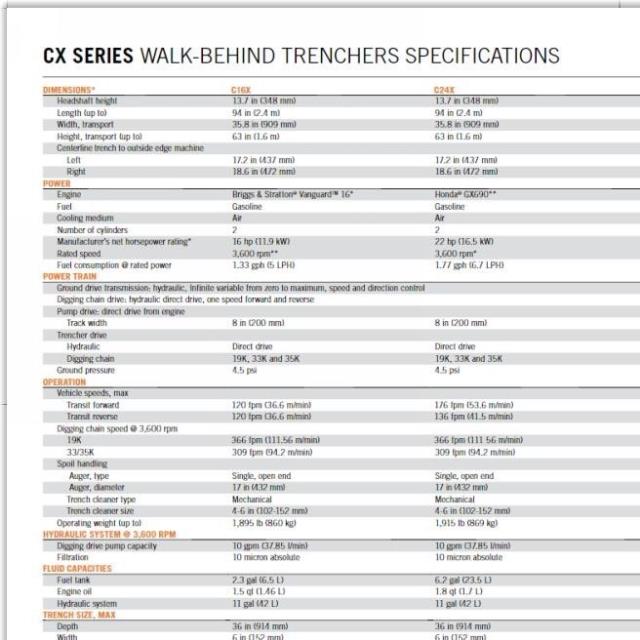

DIMENSIONS U.S. METRIC
Width 35.8in 909mm
Cl to Right 18.6in 472mm
CL to Left 17.2in 437mm
Headshaft 13.7in 348mm
Length (Up to) 94in 3mm
Height, Transport (Up to) 63in 1.6m
POWER
Engine Vanguard
Fuel Gasoline
Cooling Air
Number of Cylinders 2
Manufactures Net HP rating 16 HP 11.9 kW
Rated Speed 3600 RPM
Fuel Consumption @ Rated Power 1.33 GPH 5 LPH
POWER TRAIN
Ground drive Hydraulic, Infinite variable from zero to maximum, speed and direction control
Digging Chain Drive Hydraulic direct drive, one speed forward, reverse
Pump Drive Direct to Engine
Track Width 200mm
Hydraulic Direct Drive
Digging Chain 33/35K
Ground Pressure 4.5psi
OPERATION
Travel Speed (Fwd) 120 ft/min
Travel Speed (Rev) 120 ft/min
Diggin Chain Speed (Std) 309 ft/min
Spoils Handling Auger, Single, Open end
Auger Diameter 17in
Trencher Cleaner Type Mechainical
Trench Cleaner Size 4-6in
Operating weight (up to) 1895lb
FLUID CAPACITES
Fuel 2.3 Gal
Hydraulic 11 Gal

* Please submit a quote request or call us for pricing or questions about our trencher walkbehind rentals in Artesia CA, Los Angeles, San Diego, Palm Springs, and Southern California.
